Request a quote for pipe, fittings, and installation accessories

INSTRUCTIONS:

Step 1: Enter the System Quantity for each item needed to complete your Rexflex inert gas piping system.
- Note: If an Installation Kit is selected, the Order Qty may show a different amount. This is because the number of items included in the kit are subtracted to get Order Qty. Example: System Qty requires 200 Rexflex Pipe Mounting Clips. If a Kit is selected that includes that size of Clip, the ‘Order Qty’ for that Clip will be 150 because 50 are included with the Kit.
Step 2: Complete the contact information fields so we know who to reply to and click ‘Request Quote’.

Product	Description	Details	Part Number

	Rexflex Piping System Installation Kit (3/4″)	Rexarc Manifold & 5 Station Outlets – 3/4″ Main Line and 3/4″ Drop Lines	RFK-5 OUTLET-0.75
	Rexflex Piping System Installation Kit (1″)	Rexarc Manifold & 5 Station Outlets – 1″ Main Line and 3/4″ Drop Lines	RFK-5 OUTLET-1

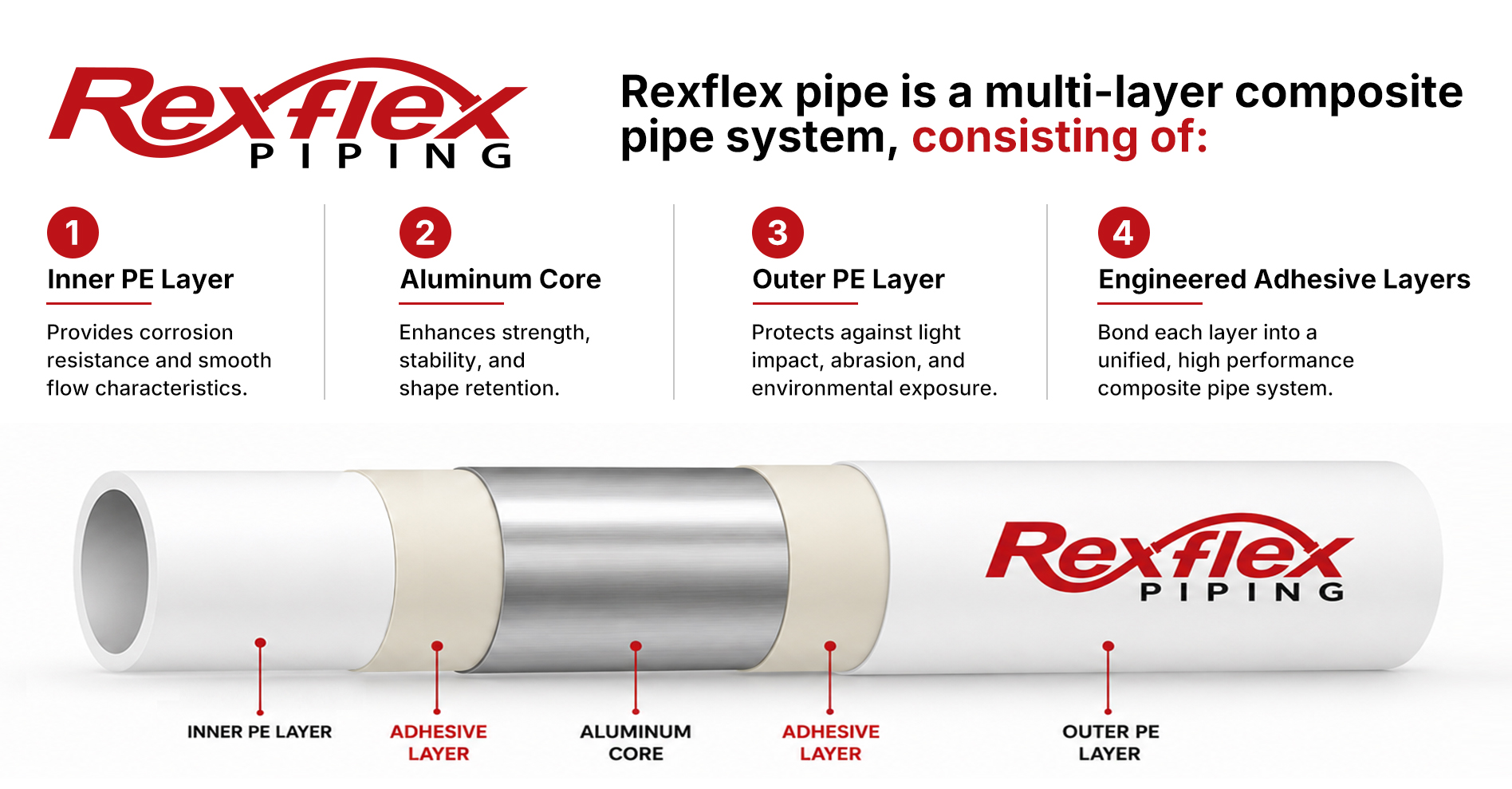

Rexflex Pipe M.A.W.P.: 200 psi @ 73°f / 160 psi @ 140°f Materials: PE x AL x PE, Glued, ASTM 1282
	Rexflex Pipe (3/4″)	50′ Roll (Inert Gases)	RFP-PE-AL-INRT-0.75-50
	Rexflex Pipe (1″)	100′ Roll (Inert Gases)	RFP-PE-AL-INRT-1.0-100
	Rexflex Pipe (3/4″)	300′ Roll (Inert Gases)	RFP-PE-AL-INRT-0.75-300
	Rexflex Pipe (1″)	300′ Roll (Inert Gases)	RFP-PE-AL-INRT-1.0-300
	Rexflex Pipe Mounting Clips (3/4″)	Requires surface hardware. Recommended: 1 clip/5′ (50 included in 3/4″ Kit)	RFF-CLIP-0.75
	Rexflex Pipe Mounting Clips (1″)	Requires surface hardware. Recommended: 1 clip/5′ (50 included in 1″ Kit)	RFF-CLIP-1.0
Reflex Pipe Fittings and Valves (All Rexflex) M.A.W.P.: 250 psi Materials: 57 Brass Nickel Plated
	Coupling (3/4″)	3/4″ (4 included in 3/4″ Kit)	RFF-COUP-0.75Px0.75P
	Coupling (1″)	1″ (4 included in 1″ Kit)	RFF-COUP-1.0Px1.0P
	Tee (3/4″)	3/4″ (4 included in 3/4″ Kit)	RFF-TEE-0.75×0.75×0.75
	Tee (1″ x 3/4″ x 1″)	1″ x 3/4″ x 1″ (4 included in 1″ Kit)	RFF-TEE-1.0×0.75×1.0
	Tee (1″)	1″	RFF-TEE-1.0×1.0x1.0
	Elbow (3/4″)	3/4″ (6 included in 3/4″ Kit)	RFF-LBOW-0.75×0.75
	Elbow (1″ x 3/4″)	1″ x 3/4″ (1 included in 1″ Kit)	RFF-LBOW-1.0×0.75
	Elbow (1″)	1″ Both Ends (5 included in 1″ Kit)	RFF-LBOW-1.0×1.0
	Shut-off Valve (3/4″)	3/4″ Both Ends (1 included in 3/4″)	RFF-VALV-0.75Px0.75P
	Shut-off Valve (1″)	1″ Both Ends (1 included in 1″)	RFF-VALV-1.0Px1.0P
Rexflex Pipe fittings and valves – NPT – Rexflex M.A.W.P.: 250 psi Materials: 57 Brass Nickel Plated
	Straight Adapter (1/2″ NPT)	3/4″ Rexflex x 1/2″ (M) NPT (1 Included in 3/4″ and 1″ Kit)	RFF-MSTR-0.75×0.5NM
	Straight Adapter (3/4″ NPT)	3/4″ Rexflex x 3/4″ (M) NPT (5 included in 3/4″ and 1″ Kit)	RFF-MSTR-0.75×0.75NM
	Straight Adapter (1″ NPT)	3/4″ Rexflex x 1″ (M) NPT	RFF-MSTR-0.75×1.0NM
	Coupling Adapter	3/4″ Rexflex x 3/4″ (F) NPT (1 included in 3/4″ and 1″ Kit)	RFF-COUP-0.75Fx0.75P
	Elbow Adapter (3/4″ M)	3/4″ Rexflex x 3/4″ (M) NPT (1 included in 3/4″ and 1″ Kit)	RFF-LBOW-0.75-MP
	Elbow Adapter (3/4″ F)	1″ Rexflex x 3/4″ (F) NPT	RFF-LBOW-0.75×1.0-MP
	NPT Shut-off Valve (3/4″)	3/4″ Rexflex x 3/4″ (F) NPT (1 included in 3/4″ Kit)	RFF-VALV-0.75Px0.75NF
	NPT Shut-off Valve (1″)	1″ Rexflex x 3/4″ (F) NPT (1 included in 1″ Kit)	RFF-VALV-1.0Px0.75NF
	Vent Outlet Screen	3/4″ (F) NPT (1 included in 3/4″ and 1″ Kits)	RFF-SCREEN-0.75
Rexarc Manual Changeover Manifold Fittings
	Gas Outlet Elbow	3/4″ (M) NPT x 3/4″ (F) NPT (1 included in 3/4″ and 1″ Kits)	1-34-0038-06
	Gas Outlet Nipple (Manual)	3/4″ (M) NPT x 4″ (1 included in 3/4″ and 1″ Kits)	1-34-0049-06-32
Rexarc Automatic Changeover Manifold Fittings
	Gas Outlet Nipple (Auto)	1/2″ (M) NPT x 2″ (1 included in 3/4″ and 1″ Kits)	1-34-0049-04-16
	Gas Outlet Bushing	3/4″ (M) NPT x 1/2″ (F) NPT (1 included in 3/4″ and 1″ Kits)	1-34-0006-06-04
	Control Box Relief Valve Nipple	1/4″ (M) NPT x 8″ (1 included in 3/4″ and 1″ Kits)	1-34-0049-02-64
	Pressure Relief Valve Outlet Bushing	3/4″ (M) NPT x 1/4″ (F) NPT (1 included in 3/4″ and 1″ Kits)	1-34-0002-06-02
Installation Tools for Rexflex Pipe & Fittings
	Rexflex Pipe Cutter	Hand Ratchet Style Pipe Cutter Assembly (1 included in 3/4″ and 1″ Kits)	RFT-CUTTER
	Rexflex Pipe Reamer	For 3/4″ and 1″ (1 included in 3/4″ and 1″ Kits)	RFT-REAMER
	Rexflex Pipe Straightener	Easily straighten Rexflex Pipe	RFT-PIPESTRAIGTENER
	Rexflex Pipe Bender	Forming tool for tighter radius curves	RFT-BENDER
Labels – NFPA Compliant
	ARGON LABEL	White/Black	1-03-0107
	ARGON – CO2 MIXED LABEL	White/Black	1-03-0238
	CARBON DIOXIDE LABEL	White/Black	1-03-0108
	COMPRESSED AIR LABEL	White/Black	1-03-0105
	NITROGEN LABEL	White/Black	1-03-0106
Replacement O-Rings for Rexflex Fittings
	O-Ring for Rexflex Fitting (3/4″)	3/4″	RFF-ORING-0.75
	O-Ring for Rexflex Fitting (1″)	1″	RFF-ORING-1.0
